Do you hear a strange noise coming from the back of the freezer? If so, you might have a problem with the fan motor that circulates cold air inside the freezer. This fan is also called the evaporator fan, and it is located behind the rear panel of the freezer.

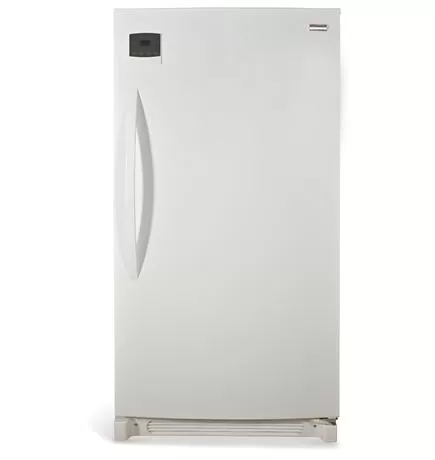

In this blog post, we will show you how to install a new fan on the fan motor of your Kenmore Elite freezer and how to test it. This is a relatively easy DIY project that can save you money and time. You will need some basic tools and a replacement fan motor that matches your freezer model.
To install a new fan on the fan motor of your Kenmore Elite freezer, you need to remove the rear panel of the freezer, unplug the old fan motor, remove it from the mounting bracket, transfer the fan blade to the new motor, install the new motor in the bracket, plug it in, and reinstall the rear panel.
The fan motor is an essential part of your freezer’s cooling system. It blows air across the evaporator coils, which are filled with refrigerant. The refrigerant absorbs heat from the air and turns into gas. The gas then travels to the compressor, where it is pressurized and cooled down. The cooled gas then returns to the evaporator coils, where it turns back into liquid and releases cold air. The fan motor distributes this cold air throughout the freezer, keeping your food frozen.
If the fan motor fails, the cold air will not circulate properly, and your freezer will start to warm up. You might notice frost buildup on the rear panel of the freezer, ice crystals on your food, or a loud humming or buzzing noise from the back of the freezer. These are signs that your fan motor is not working correctly and needs to be replaced.
Before you start, make sure you unplug your freezer or turn off the circuit breaker for safety reasons. You will also need to empty your freezer and remove any shelves or baskets that might get in your way.
To access the fan motor, you need to remove the rear panel of the freezer. This panel is also called the evaporator cover, and it is held by several screws. Use a 1/4 inch nut driver or a screwdriver to remove these screws and pull out the panel. You might need to use some force to break the seal of the gasket around the panel.
Behind the panel, you will see the fan motor attached to a metal bracket. The fan motor has two wires that connect it to a wire harness plug. To disconnect these wires, simply pull them out of the plug. You might need to use needle-nose pliers to grip them.
The fan motor is secured by a metal retainer that has two locking tabs on each side. To remove this retainer, use needle-nose pliers to lift up these tabs and rotate it counterclockwise until it comes off. Then, pull out the old fan motor from the bracket.
The old fan motor has a plastic blade that fits on its shaft. You need to transfer this blade to the new motor. To do this, use needle-nose pliers to remove a spring clip that holds the blade in place. Then, pull off the blade from the shaft and slide it onto the new motor’s shaft.
Place the new motor in the mounting bracket and align its holes with those on the bracket. Then, reinstall the metal retainer and rotate it clockwise until it locks in place. Make sure you push down the tabs on both sides of the retainer.
the new fan motor
Reconnect the two wires of the new fan motor to the wire harness plug. Make sure they are firmly inserted and match the colors.
the rear panel of the freezer
Place the rear panel on the back wall of the freezer. Push the gasket into the sides of the panel. Reinstall the screws that hold the panel in place.
the new fan motor
After you install the new fan motor, you can test it by plugging in your freezer or turning on the circuit breaker. You should hear the fan running smoothly and quietly. You can also check the temperature of your freezer after a few hours and make sure it is cold enough.
Q: How do I find the right replacement fan motor for my Kenmore Elite freezer?
A: You can find the right replacement fan motor for your Kenmore Elite freezer by looking up your freezer model number on the Sears PartsDirect website. You can also call 1-800-437-1673 to speak with a parts specialist.
Q: How much does a new fan motor cost?
A: The cost of a new fan motor depends on the model and brand of your freezer. You can expect to pay between $30 and $100 for a new fan motor.
Q: How often do I need to replace the fan motor?
A: The fan motor is a durable part that can last for several years. However, it can wear out over time due to dust, dirt, or moisture. You should replace the fan motor if it stops working, makes loud noises, or causes your freezer to warm up.
Replacing the fan motor of your Kenmore Elite freezer is not a difficult task if you follow the steps we outlined in this blog post. You will need some basic tools and a new fan motor that matches your freezer model. By installing a new fan motor, you can restore your freezer’s cooling performance and prevent food spoilage.
